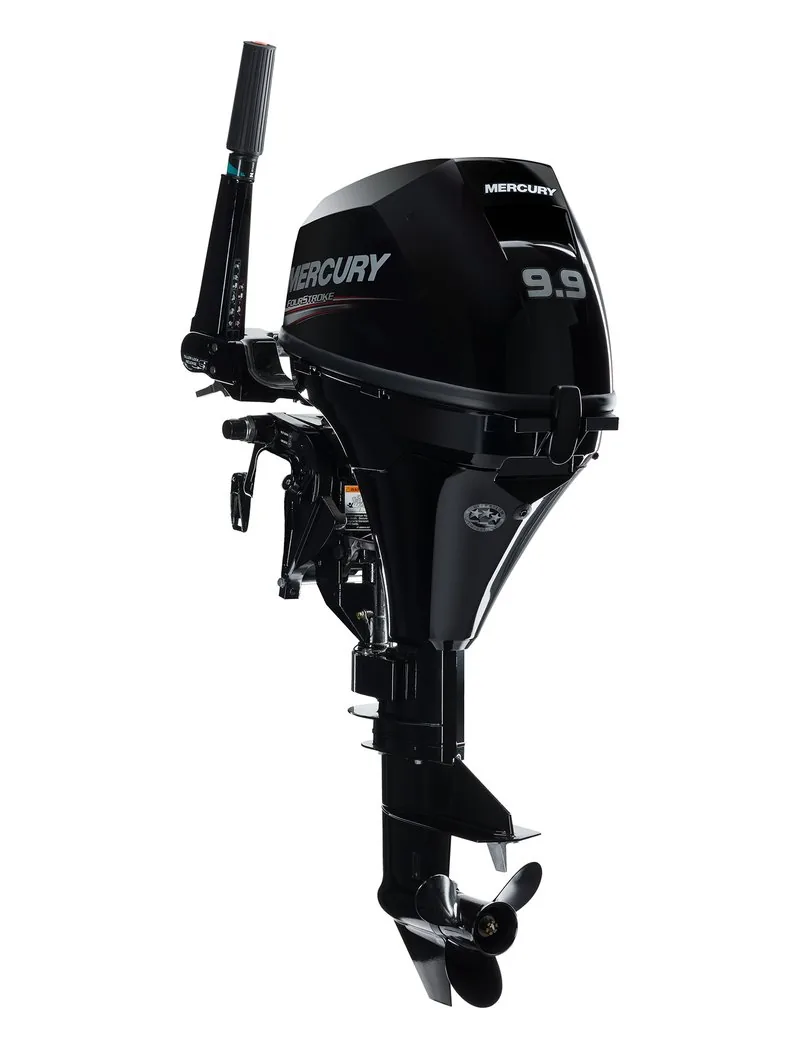

2020 Mercury 9.9 HP 9.9MXLH-CT Outboard Motor

MODEL 9.9MXLH-CT

MODEL YEAR 2020

SKU 9.9MXLH-CT-20

WEIGHT 99.0 lb

MANUFACTURER Mercury

COUNTRY OF MANUFACTURE Japan

HORSEPOWER 9.9hp

SHAFT LENGTH 25″ (Extra Long)

STEERING Tiller

STARTING Manual

TRIM & TILT Manual

FUEL DELIVERY Carburetor

FUEL TANK External

CYLINDER(S) 2

DISPLACEMENT 208 cc (12.8 cubic inches)

BORE AND STROKE 55 x 44 mm (2.16 x 1.73 inches)

FULL THROTTLE RPM RANGE 5000-6000

IGNITION SYSTEM Digital CD Ignition w/Electronic Spark Advance

INDUCTION SCAVENGING SOHC

VALVES PER CYLINDER 2

FUEL TYPE 87 Octane (up to 10% ethanol content)

FUEL TANK / FUEL LINE 3.2 Gal. Fuel Tank + Quick Connect Fuel Line

OIL TYPE SAE 10W-30 (Mercury 4-Stroke Outboard Oil)

OIL CAPACITY 27 fl. Oz. (800 ml)

LUBRICATION Trochoid Pump

ALTERNATOR Optional 12V 76W 6A (installation required)

COOLING SYSTEM Water-Cooled, Thermostatically Controlled

SALTWATER RATED Yes

GEAR RATIO 2.42:1 CommandThrust Gearcase

GEAR SHIFT Forward-Neutral-Reverse (shift in tiller handle)

PROPELLER CommandThrust 4-Blade High Thrust Aluminum Propeller
