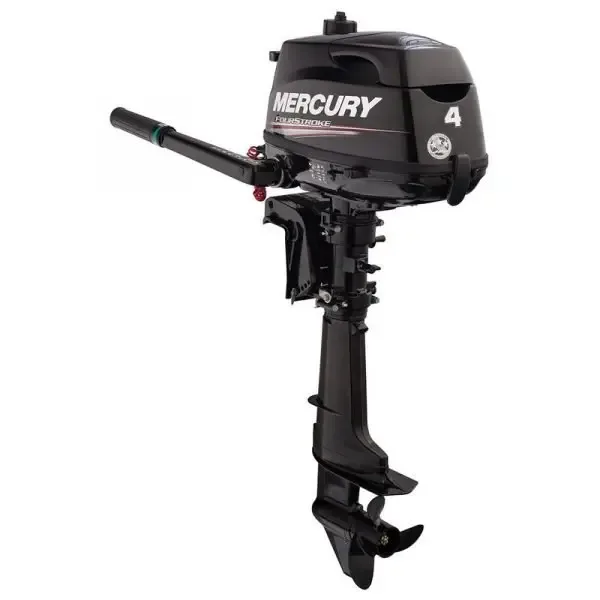

2024 Mercury 4 HP MH Outboard Motor

SPECS

MODEL Mercury Outboard 4MH

MODEL YEAR 2024

SKU 1F04201KK

WEIGHT 57.0 lb

MANUFACTURER Mercury Marine

COUNTRY OF MANUFACTURE Japan

HORSEPOWER 4 HP

SHAFT LENGTH 15″ (Short)

STEERING Tiller

STARTING Manual

TRIM & TILT Manual

FUEL DELIVERY Carburetor

FUEL TANK Internal

CYLINDER(S) 1

DISPLACEMENT 7.5/123

BORE AND STROKE 2.32 x 1.77

FULL THROTTLE RPM RANGE 4500-5500

IGNITION SYSTEM CDI

INDUCTION SCAVENGING OHV

VALVES PER CYLINDER 2

FUEL TYPE 87 Octane (up to 10% ethanol content)

FUEL TANK / FUEL LINE 0.3 US Gallon (1.15 liter)

OIL TYPE SAE 10W-30 (Mercury 4-Stroke Outboard Oil)

OIL CAPACITY 15 fl. Oz. (450 ml)

LUBRICATION Pressurized wet sump

ALTERNATOR Optional

COOLING SYSTEM Water-cooled w/thermostat

SALTWATER RATED Yes

GEAR RATIO 2.15:1

GEAR SHIFT Forward-Neutral-Reverse (forward mounted shift lever)

PROPELLER 8.375″ Diameter X 7.0″ Pitch 3-Blade Aluminum

IN THE BOX

- Integral Fuel Tank (0.3 gal)
- Owner’s Manual
- Mercury 3-Year Warranty
- Aluminum Propeller
- Mercury 4-Stroke Oil
- Tool Kit
